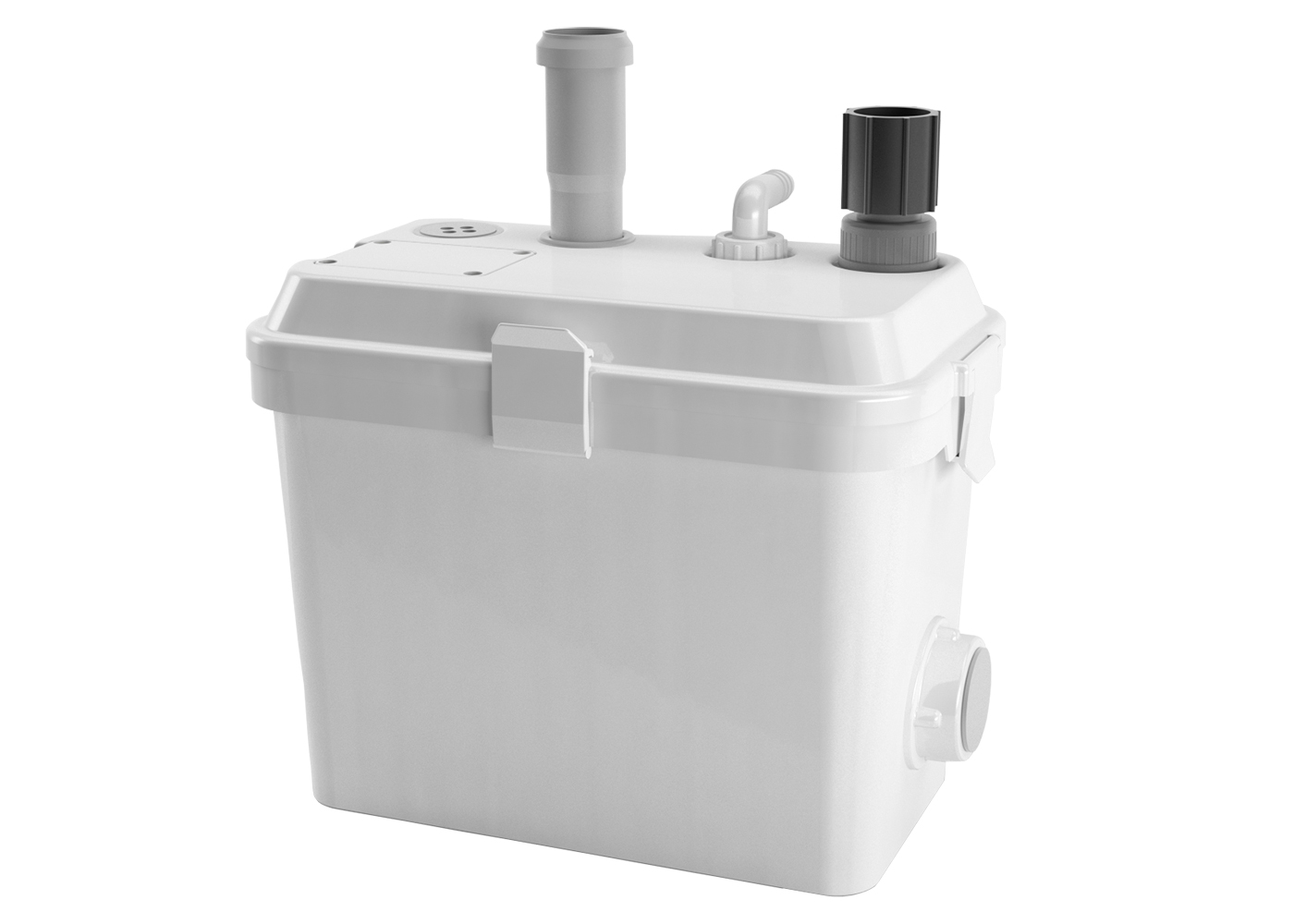

S-SWH 100 series

Model

for use behind water softening systems and for calorific value condensate
high-quality, silicon carbide mechanical seal, stainless steel motor housing (1.4404), stainless steel motor shaft
additional connection of shower, washbasin and washing machine possible
integrated audible alarm
pump fixed on lid -> easy cleaning and maintenance
potential-free alarm transmission
20 litres container volume
pressure outlet 1 ¼“ FPT with integrated non-return valve

Designation

Article number

S-SWH 100

waste water lifting unit (above-ground)

features reed contact
Free passage 10 mm
Head up to 6,0 m
Voltage 230 V

Article number 11466

S-SWH 170

waste water lifting unit (above-ground)

features reed contact
Free passage 10 mm
Head up to 10,0 m
Voltage 230 V

Article number 11470

S-SWH 190

waste water lifting unit (above-ground)

features reed contact
Free passage 10 mm
Head up to 11,0 m
Voltage 230 V

Article number 11472
